Flight Controls
Up Primary Flight Controls Seconday Flying Controls




Flight Control System Schematic

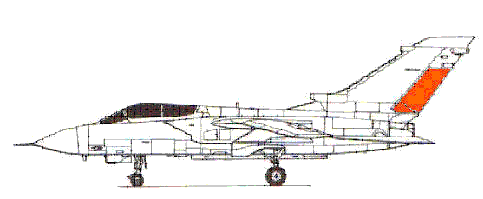

Rudder

The rudder is used for directional control, yaw , and is hydraulically actuated.

It can be considered as one of the primary flight control surfaces along with the tailerons.

In Manoeuvre Demand (MD) the rudder range of movement is +/- 30 , there is no change in range of movement when CSAS fails from MD to Direct Electrical Link (DEL).

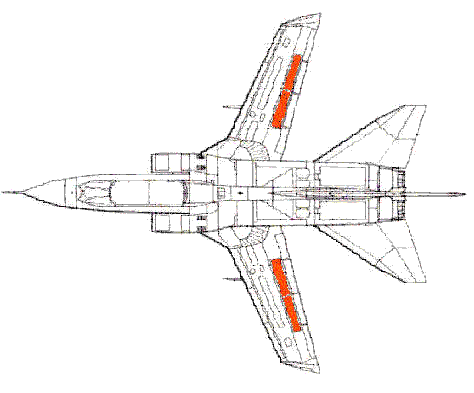

SpoilersThe spoilers are used for roll control and upon landing to break up the flow of air over the wing.
TaileronsThe tailerons can be considered as  primary control surfaces along with the rudder. These large control surfaces can be independently controlled for pitch and roll control. They can also be used upon landing for additional braking.




MODE

TAILERON

PITCH (IDS + ADV)

TAILERON

ROLL (IDS)

TAILERON

ROLL (ADV)

TAILERON

NEUTRAL

MD

+10 to -30

+/-10

+/-10

- 6.5

DEL

+5 to -25

+/-2.1

+/-3.5

- 4.5

MECH

+5 to -25

+/-5

+/-5

- 4.5



FDFull DownFRFull Right
FUFull UpFLFull Left
TDTrim DownTRTrim Right
TUTrim UpTLTrim Left

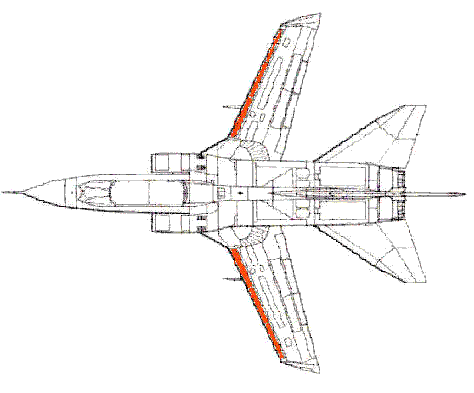

SlatsThe slats are used to improve the efficiency of the wing during take off, landing and slow speed manoeuvring.


HIGH LIFT

LEVER POSITON

FLAP

POSITION

SLAT

POSITION

KRUEGER FLAP

POSITION

UP

0

0

0

MID

35

24 30

0

DOWN

50

24 30

116 30

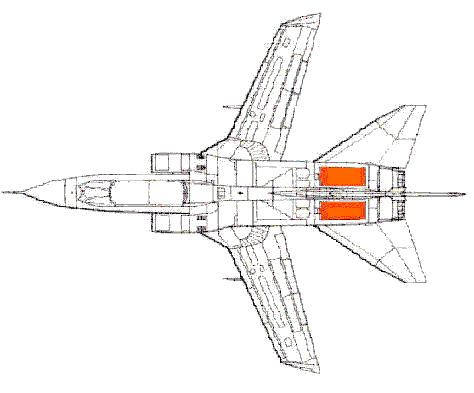

AirbrakesThe airbrakes are used to slow the aircraft down.


MACH No

DEPLOYMENT

UP TO 0.82

50 DEGREES

0.82 0.85

45 DEGREES

0.85 0.89

40 DEGREES

0.89 0.92

35 DEGREES

0.92 1.15

30 DEGREES

1.15 1.45

22.5 DEGREES

ABOVE 1.45

15 DEGREES

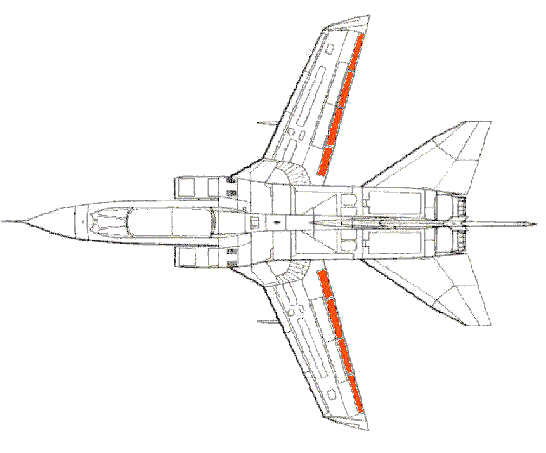

FlapsThe flaps are used to improve the efficiency of the wing during take off, landing and slow speed manoeuvring.


HIGH LIFT

LEVER POSITON

FLAP

POSITION

SLAT

POSITION

KRUEGER FLAP

POSITION

UP

0

0

0

MID

35

24 30

0

DOWN

50

24 30

116 30

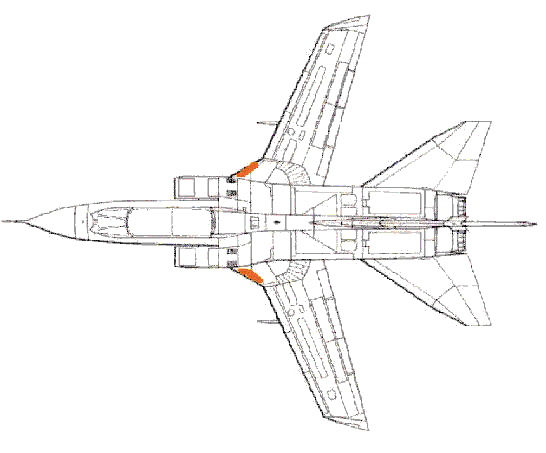

Krueger Flaps
(IDS Only)

HIGH LIFT

LEVER POSITON

FLAP

POSITION

SLAT

POSITION

KRUEGER FLAP

POSITION

UP

0

0

0

MID

35

24 30

0

DOWN

50

24 30

116 30
